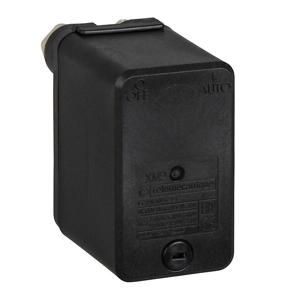

Telemecanique XMPA06B2141C205 Electromechanical Pressure Sensor
Technical Specifications of Telemecanique Pressure Sensor XMPA06B2141C205:
| Controlled fluid | Air (0-70 Β°C), fresh water (0-70 Β°C), sea water (0-70 Β°C) |
| Materials in contact with fluid | Chromated zinc alloy |
| Pressure sensor name | XMP |
| IP degree of protection | IP54 conforming to IEC 60529 |
Telemecanique Electromechanical Pressure Sensor XMPA06B2141C205 Technical Specifications
| Specification | Value |
|---|---|
| Pressure sensor name | XMP |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Controlled fluid | Air (0-70 Β°C), fresh water (0-70 Β°C), sea water (0-70 Β°C) |
| Cable entry | 2 entries incorporating Pg 13.5 plastic cable gland, cable outer diameter: 9-13 mm conforming to NF C 68-300 |
| Contacts type and composition | 2 NC snap action |
| Product specific application | Bulk packaging |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Electrical connection | Screw-clamp terminals, clamping capacity: minimum : 2 x 4 mmΒ² |
| Scale type | Adjustable differential |
| Setting | Nut |
| Local display | Without |
| Electrical circuit type | Power circuit |
| Materials in contact with fluid | Chromated zinc alloy |
| Enclosure material | PA impregnated with fibreglass |
| Operating position | Any position |
| Pressure actuator | Diaphragm |
| Terminal block type | 4 terminals |
| Operating rate | 10.0000 CYCLE_PER_MINUTE |
| Terminals description ISO nΒ°1 | (3-4)NC |
| Standards | IEC 60947-4-1 |
| Protective treatment | - |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Range of product | Telemecanique Pressure sensors XM |
| Type of decompression valve | Without |
| Control type | Without |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A |
| Vibration resistance | 3 gn conforming to IEC 60068-2-6 (f = 10-500 Hz) |
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
Send Your Inquiry for Telemecanique XMPA06B2141C205 Electromechanical Pressure Sensor with cost-effective solutions. This sensor is designed with fluid connection G 1/4 (female) conforming to ISO 228 standards, ensuring compatibility with various applications. It features a pressure switch operation type with Regulation between 2 thresholds and an Adjustable differential scale for precision control.
It is equipped with 2 NC snap action contacts, Screw-clamp terminals, clamping capacity: minimum : 2 x 4 mmΒ², and 2 entries incorporating Pg 13.5 plastic cable gland, cable outer diameter: 9-13 mm conforming to NF C 68-300 for secure connections. The pressure actuator features a Diaphragm, and the terminal block has 4 terminals for reliable operation. Capture the Best Deal with a Quote for your requirement of Telemecanique XMPA06B2141C205 Electromechanical Pressure Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
