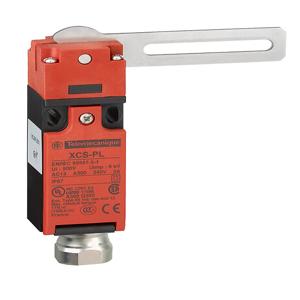

Telemecanique XCSPL563: Safety Switches
Technical Specifications of Telemecanique Safety Switches XCSPL563:
| Design | - |
| Electrical Connection | Terminal |
| Head Type | Turret head rotary lever |
| Contact Operation | Slow-break, break before make |
Telemecanique Safety Switches XCSPL563 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Safety switches XCS |
| Product or component type | Guard switch |
| Component name | XCSPL |
| Design | - |
| Material | Plastic |
| Head type | Turret head rotary lever |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Slow-break, break before make |
| Cable entry | 1 entry tapped for 1/2" NPT |
| Electrical connection | Terminal |
| Locking options description | - |
| Local signalling | - |
| Positive opening | With NC contact |
| Actuator force for extraction | - |
| Operating rate | - |
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety reliability data | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body material | - |
| Head material | - |
| Standards | EN/IEC 60204-1 |
| Product certifications | UL |
| Protective treatment | TC |
| Vibration resistance | 50 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection class | Class II conforming to EN/IEC 61140 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Signalling circuit voltage | - |
| Signalling circuit type | - |
| Protection technology | - |
| Type of operator | Straight lever |
| Clamping connection capacity | 1 x 0.5...2 x 1.5 mmΒ² with or without cable end |
| Switch actuation | - |
| Contact code designation | A300, AC-15 (Ue = 120 V, Ie = 6 A) conforming to EN/IEC 60947-5-1, A300, AC-15 (Ue = 240 V, Ie = 3 A) conforming to EN/IEC 60947-5-1, Q300, DC-13 (Ue = 125 V, Ie = 0.55 A) conforming to EN/IEC 60947-5-1, Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 |
| Resistance across terminals | 30 mOhm conforming to EN/IEC 60947-5-4 |
| Repeat accuracy | - |
| Enclosure material | Polyamide PA66 fibre glass impregnated |
| Size | - |
| Cable composition | - |
| [Ue] rated operational voltage | - |
| Switching frequency | - |
| Cable material | - |
| Connector type | - |
| [Us] rated supply voltage | - |
Mail Us for your needs in Telemecanique Safety Switches XCSPL563 with budget-friendly prices. The Main Technical Parameters of XCSPL563 include this Guard switch Product or component type and the XCSPL Component name robust protection and precise operation. Designed with 1 NC + 1 NO and Slow-break, break before make contacts, it guarantees safe and efficient functionality in critical environments. The switch features an Plastic body providing durability and resistance to harsh conditions. With an industrial design, it supports a Terminal. It delivers excellent reliability under stress, 50 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 vibration resistance standards, and 50 gn for 11 ms conforming to IEC 60068-2-27 shock resistance standards. Customize Your Experience with a Quote for your requirement of Safety Switches. Experience the difference with our competitive pricing and superior support over other Suppliers.
