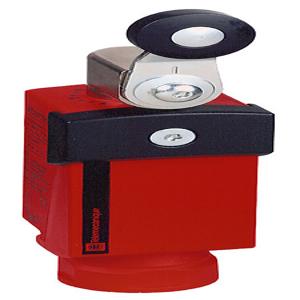

Telemecanique XCSP3918P20: Safety Switches
Technical Specifications of Telemecanique Safety Switches XCSP3918P20:
| Design | Compact |
| Electrical Connection | Terminal |
| Head Type | Rotary head |
| Contact Operation | Snap action |
Telemecanique Safety Switches XCSP3918P20 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Safety switches XCS |
| Product or component type | Safety limit switch |
| Component name | XCSP |
| Design | Compact |
| Material | Plastic |
| Head type | Rotary head |
| Contacts type and composition | 1 NC + 1 NC + 1 NO |
| Contact operation | Snap action |
| Cable entry | 1 entry tapped for M20 x 1.5 |
| Electrical connection | Terminal |
| Locking options description | - |
| Local signalling | - |
| Positive opening | With NC contact |
| Actuator force for extraction | - |
| Operating rate | - |
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety reliability data | B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body material | Plastic |
| Head material | Zamak |
| Standards | IEC 60204-1 |
| Product certifications | UL |
| Protective treatment | TC |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection class | Class II |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 |
| Signalling circuit voltage | - |
| Signalling circuit type | - |
| Protection technology | Plastic protective cover, secured by 5-lobe socket head safety screw |
| Type of operator | Thermoplastic roller lever |
| Clamping connection capacity | 1 x 0.34...2 x 0.75 mmΒ² |
| Switch actuation | By 30Β° cam |
| Contact code designation | B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Repeat accuracy | 0.1 mm on tripping points, 1 million operating cycles for head with end plunger |
| Enclosure material | Plastic |
| Size | - |
| Cable composition | - |
| [Ue] rated operational voltage | - |
| Switching frequency | - |
| Cable material | - |
| Connector type | - |
| [Us] rated supply voltage | - |
Obtain a Quote for Telemecanique Safety Switches XCSP3918P20 at economical prices. Specifications Overview for XCSP3918P20 reveals Compact safety applications. This Rotary head type Safety limit switch Product or component type and the XCSP Component name robust protection and precise operation. Designed with 1 NC + 1 NC + 1 NO and Snap action contacts, it guarantees safe and efficient functionality in critical environments. The switch features an Plastic body and a Zamak head, providing durability and resistance to harsh conditions. With an industrial design, it supports a Terminal. It delivers excellent reliability under stress, 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 vibration resistance standards, and 50 gn for 11 ms conforming to IEC 60068-2-27 shock resistance standards. Take the First Step with a Quote for your requirement of Safety Switches. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
