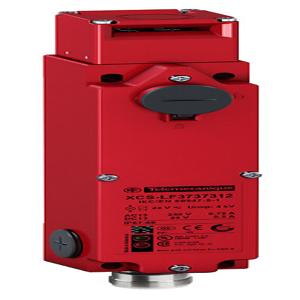

Telemecanique XCSLF373731M3: Safety Switches
Technical Specifications of Telemecanique Safety Switches XCSLF373731M3:
| Design | Slim |
| Electrical Connection | Male connector M23, 19 pins |
| Head Type | Key operated turret head |
| Contact Operation | Slow-break, break before make |
Telemecanique Safety Switches XCSLF373731M3 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Safety switches XCS |
| Product or component type | Safety switch |
| Component name | XCSLF |
| Design | Slim |
| Material | Metal |
| Head type | Key operated turret head |
| Contacts type and composition | 2 NC + 1 NO |
| Contact operation | Slow-break, break before make |
| Cable entry | - |
| Electrical connection | Male connector M23, 19 pins |
| Locking options description | With interlocking, locking by solenoid |
| Local signalling | 1 LED (orange) for actuator withdrawn, 1 LED (green) for actuator inserted and locked |
| Positive opening | With NC contact |
| Actuator force for extraction | 20.0000 NEWTON |
| Operating rate | 10 cyc/mn for maximum durability |
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 conforming to IEC 61508 |
| Safety reliability data | B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body material | Zamak |
| Head material | Zamak |
| Standards | IEC 60204-1 |
| Product certifications | UL |
| Protective treatment | TC |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 10 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection class | Class I conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1, IP65 |
| Signalling circuit voltage | 24 V |
| Signalling circuit type | AC/DC |
| Protection technology | - |
| Type of operator | - |
| Clamping connection capacity | - |
| Switch actuation | - |
| Contact code designation | - |
| Resistance across terminals | - |
| Repeat accuracy | - |
| Enclosure material | - |
| Size | - |
| Cable composition | - |
| [Ue] rated operational voltage | - |
| Switching frequency | - |
| Cable material | - |
| Connector type | - |
| [Us] rated supply voltage | 24 V - 15...10 % |
Please speak to our Technical Engineer for Telemecanique Safety Switches XCSLF373731M3 at attractive prices. Technical Specs Summary of XCSLF373731M3 includes Slim safety applications. This Key operated turret head type Safety switch Product or component type and the XCSLF Component name robust protection and precise operation. Designed with 2 NC + 1 NO and Slow-break, break before make contacts, it guarantees safe and efficient functionality in critical environments. The switch features an Metal body and a Zamak head, providing durability and resistance to harsh conditions. With an industrial design, it supports a Male connector M23, 19 pins. It delivers excellent reliability under stress, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 vibration resistance standards, and 10 gn for 11 ms conforming to IEC 60068-2-27 shock resistance standards. Match Your Needs with a Quote for your requirement of Safety Switches. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
