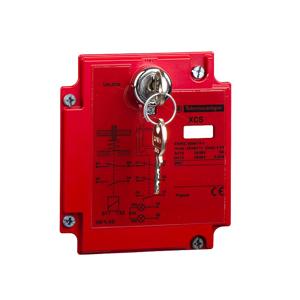

Telemecanique XCSE731125: Safety Switches

Technical Specifications of Telemecanique Safety Switches XCSE731125:

Design	Rectangular
Electrical Connection	Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end
Head Type	Key operated turret head
Contact Operation	Slow-break, break before make

Telemecanique Safety Switches XCSE731125 Technical Specifications

Specification	Value
Range of product	Telemecanique Safety switches XCS
Product or component type	Safety switch
Component name	XCSE
Design	Rectangular
Material	Metal
Head type	Key operated turret head
Contacts type and composition	2 NC + 1 NO
Contact operation	Slow-break, break before make
Cable entry	2 entries tapped for Pg 13.5
Electrical connection	Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end
Locking options description	With interlocking, locking by solenoid
Local signalling	2 LEDs (green or orange) for guard open/guard closed and locked
Positive opening	With NC contact
Actuator force for extraction	20.0000 NEWTON
Operating rate	10 cyc/mn for maximum durability
Safety level	Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Safety reliability data	B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Body material	Zamak
Head material	Zamak
Standards	IEC 60204-1
Product certifications	UL
Protective treatment	TC
Vibration resistance	5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance	10 gn for 11 ms conforming to IEC 60068-2-27
Electrical shock protection class	Class I conforming to IEC 61140
IP degree of protection	IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Signalling circuit voltage	24/48 V (voltage limits: 20...52 V)
Signalling circuit type	AC/DC
Protection technology	-
Type of operator	-
Clamping connection capacity	-
Switch actuation	-
Contact code designation	-
Resistance across terminals	-
Repeat accuracy	-
Enclosure material	-
Size	-
Cable composition	-
[Ue] rated operational voltage	-
Switching frequency	-
Cable material	-
Connector type	-
[Us] rated supply voltage	24 V - 20...10 %

Send Your Inquiry for Telemecanique Safety Switches XCSE731125 with cost-effective solutions. Essential Technical Specs of XCSE731125 are Rectangular safety applications. This Key operated turret head type Safety switch Product or component type and the XCSE Component name robust protection and precise operation. Designed with 2 NC + 1 NO and Slow-break, break before make contacts, it guarantees safe and efficient functionality in critical environments. The switch features an Metal body and a Zamak head, providing durability and resistance to harsh conditions. With an industrial design, it supports a Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end. It delivers excellent reliability under stress, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 vibration resistance standards, and 10 gn for 11 ms conforming to IEC 60068-2-27 shock resistance standards. Capture the Best Deal with a Quote for your requirement of Safety Switches. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
