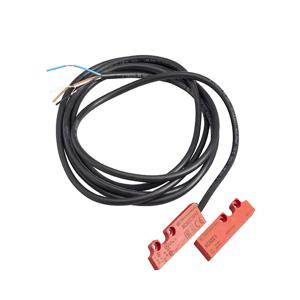

Telemecanique XCSDMC59110: Safety Switches
Technical Specifications of Telemecanique Safety Switches XCSDMC59110:
| Design | Rectangular, compact |
| Electrical Connection | Pre-cabled |
| Head Type | - |
| Contact Operation | Staggered |
Telemecanique Safety Switches XCSDMC59110 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Safety switches XCS |
| Product or component type | Coded magnetic switch |
| Component name | XCSDMC |
| Design | Rectangular, compact |
| Material | Plastic |
| Head type | - |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Staggered |
| Cable entry | - |
| Electrical connection | Pre-cabled |
| Locking options description | - |
| Local signalling | 1 LED |
| Positive opening | - |
| Actuator force for extraction | - |
| Operating rate | - |
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 |
| Safety reliability data | B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body material | - |
| Head material | - |
| Standards | EN/IEC 60204-1 |
| Product certifications | UL |
| Protective treatment | TH |
| Vibration resistance | 10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection class | Class II conforming to EN/IEC 61140 |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 |
| Signalling circuit voltage | - |
| Signalling circuit type | - |
| Protection technology | - |
| Type of operator | - |
| Clamping connection capacity | - |
| Switch actuation | - |
| Contact code designation | - |
| Resistance across terminals | - |
| Repeat accuracy | - |
| Enclosure material | Thermoplastic PBT |
| Size | 51 x 16 x 7 mm |
| Cable composition | 4 x 0.25 mm² |
| [Ue] rated operational voltage | 24 V DC |
| Switching frequency | 150 Hz |
| Cable material | PVC |
| Connector type | - |
| [Us] rated supply voltage | - |
Mail Us for your needs in Telemecanique Safety Switches XCSDMC59110 with budget-friendly prices. The Main Technical Parameters of XCSDMC59110 include Rectangular, compact safety applications. This Coded magnetic switch Product or component type and the XCSDMC Component name robust protection and precise operation. Designed with 1 NC + 1 NO and Staggered contacts, it guarantees safe and efficient functionality in critical environments. The switch features an Plastic body providing durability and resistance to harsh conditions. With an industrial design, it supports a Pre-cabled. It delivers excellent reliability under stress, 10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 vibration resistance standards, and 30 gn for 11 ms conforming to IEC 60068-2-27 shock resistance standards. Customize Your Experience with a Quote for your requirement of Safety Switches. Experience the difference with our competitive pricing and superior support over other Suppliers.
