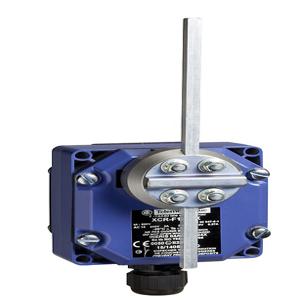

Telemecanique Sensors XCRA151EX Limit Switch

Technical Specifications of Telemecanique Limit Switch XCRA151EX:

Product or component type	Limit switch
Sensor design	-
IP degree of protection	IP65 conforming to IEC 60529
Contacts type and composition	2 x (1 NC + 1 NO)

Telemecanique Sensors Limit Switch XCRA151EX Technical Specifications

Specification	Value
Range of product	OsiSense ATEX D
Series name	Special format
Product or component type	Limit switch
Device short name	XCR
Sensor design	-
Body type	Fixed
Head type	Rotary head
Material	Metal
Fixing mode	By the body
Movement of operating head	Rotary
Type of operator	Spring return roller lever thermoplastic large
Switch actuation	By any moving part
Type of approach	Lateral approach, 2 directions
Electrical connection	Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts type and composition	2 x (1 NC + 1 NO)
Contacts insulation form	Zb
Contact operation	Snap action
Positive opening	With
IP degree of protection	IP65 conforming to IEC 60529
Body material	-
Head material	-
Contact code designation	A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN 60947-5-1, A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN 60947-5-1, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals	25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Marking	II2 D-Ex tb IIIC T85°C Db IP66/67
Shock resistance	68 gn conforming to IEC 60068-2-27
Vibration resistance	9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Electrical shock protection class	Class I conforming to IEC 60536, class I conforming to NF C 20-030
Protective treatment	TC
Dust zone	Zone 21 - 22
Product certifications	IEC-Ex INE 16.0048X
Standards	EN/IEC 60079-0
Directives	2014/34/EU - ATEX directive

Give Us a Call for Telemecanique Sensors XCRA151EX Limit Switch at the lowest pricing. This limit switch features Fixed Special format, body design with a Metal Rotary head and a Spring return roller lever thermoplastic large. It operates through a By any moving part with Lateral approach, 2 directions, enabling smooth Rotary movement. The switch is equipped with Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm². It includes 2 x (1 NC + 1 NO) Snap action contacts with Zb insulation. Elevate Your Project with a Quote for your requirement of Telemecanique XCRA151EX Limit Switch. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
