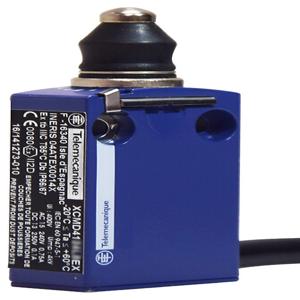

Telemecanique Sensors XCMD4111L5EX Limit Switch
Technical Specifications of Telemecanique Limit Switch XCMD4111L5EX:
| Product or component type | Limit switch |
| Sensor design | Miniature |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 |
| Contacts type and composition | 2 x (1 NC + 1 NO) |
Telemecanique Sensors Limit Switch XCMD4111L5EX Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCMD |
| Sensor design | Miniature |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Metal |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return plunger metal with elastomer boot |
| Switch actuation | On end |
| Type of approach | Vertical approach, 1 direction |
| Electrical connection | Fixed cable |
| Contacts type and composition | 2 x (1 NC + 1 NO) |
| Contacts insulation form | Zb |
| Contact operation | Snap action |
| Positive opening | With |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 |
| Body material | Zamak |
| Head material | Zamak |
| Contact code designation | R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN 60947-5-1, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, C300, AC-15 (Ue = 240 V), Ie = 0.75 A conforming to EN 60947-5-1, C300, AC-15 (Ue = 240 V), Ie = 0.75 A conforming to IEC 60947-5-1 appendix A |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Marking | II2 D-Ex tb IIIC T85Β°C Db IP66/67 |
| Shock resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective treatment | TC |
| Dust zone | Zone 21 - 22 |
| Product certifications | IEC-Ex INE 17.0020X |
| Standards | EN/IEC 60079-0 |
| Directives | 2014/34/EU - ATEX directive |
Send Your Inquiry for Telemecanique Sensors XCMD4111L5EX Limit Switch with cost-effective solutions. This limit switch features Fixed Standard format, body design with a Metal Plunger head and a Spring return plunger metal with elastomer boot. It operates through a On end with Vertical approach, 1 direction, enabling smooth Linear movement. The switch is equipped with Fixed cable. It includes 2 x (1 NC + 1 NO) Snap action contacts with Zb insulation and is built with durable Zamak material for both the body and head. Capture the Best Deal with a Quote for your requirement of Telemecanique XCMD4111L5EX Limit Switch. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
