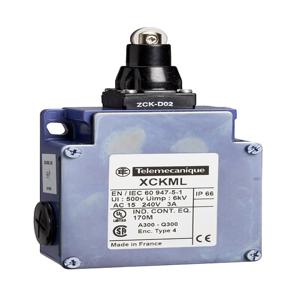

Telemecanique XCKML102H29: Standard Limit Switches Classic range
Technical Specifications of Telemecanique Standard Limit Switches Classic range XCKML102H29:
| Product or component type | Limit switch |
| Cable entry | 3 entries tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| Contacts type and composition | 2 x (1 NC + 1 NO) |
| Contact operation | Snap action |
Telemecanique Standard Limit Switches Classic range XCKML102H29 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKML |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Metal |
| Body material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return roller plunger metal |
| Type of approach | Lateral approach, 2 directions |
| Cable entry | 3 entries tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| Contacts type and composition | 2 x (1 NC + 1 NO) |
| Contact operation | Snap action |
| Switch actuation | By 30Β° cam |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mmΒ² |
| Contacts insulation form | Zb |
| Positive opening | With |
| Contact code designation | - |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO nΒ°1 | (13-14)NO |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Electrical shock protection class | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective treatment | TC |
| Standards | IEC 60204-1 |
| Product certifications | UL |
| Repeat accuracy | - |
| Product specific application | - |
| Head material | - |
| Contact block per direction [control circuit] | - |
| Sensor design | - |
| Overvoltage category | - |
| Product compatibility | - |
| Contacts material | - |
| Environmental characteristic | - |
| Local display | - |
