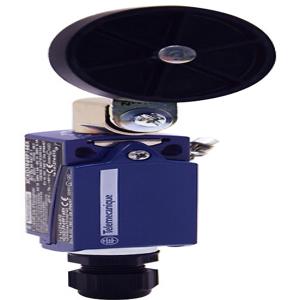

Telemecanique Sensors XCKD3939P16EX Limit Switch
Technical Specifications of Telemecanique Limit Switch XCKD3939P16EX:
| Product or component type | Limit switch |
| Sensor design | Compact |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 |
| Contacts type and composition | 2 NC + 1 NO |
Telemecanique Sensors Limit Switch XCKD3939P16EX Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKD |
| Sensor design | Compact |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller lever thermoplastic roller diameter 50 mm |
| Switch actuation | By 30Β° cam |
| Type of approach | Lateral approach, 2 directions |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mmΒ² |
| Contacts type and composition | 2 NC + 1 NO |
| Contacts insulation form | Zb |
| Contact operation | Snap action |
| Positive opening | With |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 |
| Body material | Zamak |
| Head material | Zamak |
| Contact code designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to EN 60947-5-1, B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN 60947-5-1, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Marking | II2 D-Ex tb IIIC T85Β°C Db IP66/67 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective treatment | TC |
| Dust zone | Zone 21 - 22 |
| Product certifications | IEC-Ex INE 17.0020X |
| Standards | EN/IEC 60079-0 |
| Directives | 2014/34/EU - ATEX directive |
Please speak to our Technical Engineer for Telemecanique Sensors XCKD3939P16EX Limit Switch at attractive prices. This limit switch features Fixed Standard format, body design with a Metal Rotary head and a Spring return roller lever thermoplastic roller diameter 50 mm. It operates through a By 30Β° cam with Lateral approach, 2 directions, enabling smooth Rotary movement. The switch is equipped with Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mmΒ². It includes 2 NC + 1 NO Snap action contacts with Zb insulation and is built with durable Zamak material for both the body and head. Match Your Needs with a Quote for your requirement of Telemecanique XCKD3939P16EX Limit Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
