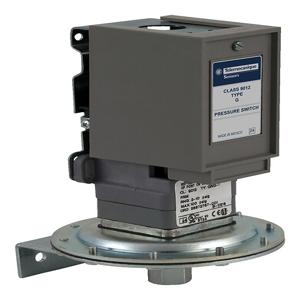

Telemecanique 9012GTG1 Electromechanical Pressure Switch
Technical Specifications of Telemecanique Pressure Switch 9012GTG1:
| Pressure sensor type | Electromechanical pressure switch |
| 10000 psi | Maximum pressure |
| Terminal block type | 4 screw terminals |
| NEMA degree of protection | NEMA 1 conforming to UL 50 |
Telemecanique Electromechanical Pressure Switch 9012GTG1 Technical Specifications
| Specification | Value |
|---|---|
| Pressure sensor type | Electromechanical pressure switch |
| Pressure sensor name | 9012G |
| Maximum pressure | 10000 psi |
| Contacts type and composition | NC-NO, SPDT, Form C, snap action, silver nickel contacts |
| Controlled fluid | Hydraulic oil (-15-250 Β°F), non-corrosive liquids (-15-250 Β°F), air (-15-250 Β°F), non-corrosive gas (-15-250 Β°F) |
| Fluid connection type | 0.25 inch 18 NPTF conforming to UL 508 |
| Pressure switch type of operation | Detection of 1 single threshold |
| Scale type | Fixed differential |
| Local display | Without |
| Cable entry | 0.5 inch NPT conduit entrance |
| Terminal block type | 4 screw terminals |
| Electrical connection | Screw-clamp terminals, AWG 22...AWG 12 |
| Electrical circuit type | Control circuit |
| Local signalling | Without: |
| Setting | Internal |
| Enclosure material | Thermoplastic |
| Pressure actuator | Piston |
| Operating position | Any position |
| Materials in contact with fluid | Zinc plated steel |
| Operating rate | 120 cyc/mn |
| Vibration resistance | 2 gn (f= 40-150 Hz) conforming to IEC 68-2-6 |
| Shock resistance | 50 gn conforming to IEC 58-2-27 |
| NEMA degree of protection | NEMA 1 conforming to UL 50 |
Mail Us for Telemecanique 9012GTG1 Electromechanical Pressure Switch at the lowest pricing. This switch features a maximum pressure capacity of 10000 psi and operates with a Detection of 1 single threshold. It has an Fixed differential scale and uses NC-NO, SPDT, Form C, snap action, silver nickel contacts for reliable performance.
Key specifications include fluid connection 0.25 inch 18 NPTF conforming to UL 508 standards, an 4 screw terminals block, and Screw-clamp terminals, AWG 22...AWG 12 wires. The cable entry is a 0.5 inch NPT conduit entrance, and the Piston Pressure actuator, with Thermoplastic insulation for contact durability. It also features Zinc plated steel materials for fluid contact and an operating rate of 120 cyc/mn. Take the First Step with a Quote for your requirement of Telemecanique Electromechanical Pressure Switch 9012GTG1. Choose us for unparalleled pricing and support over other Dealers & Distributors.
