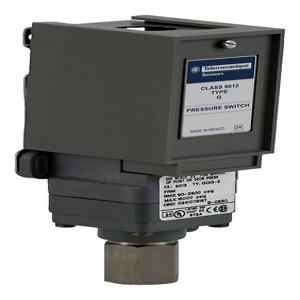

Telemecanique 9012GQG3 Electromechanical Pressure Switch
Technical Specifications of Telemecanique Pressure Switch 9012GQG3:
| Pressure sensor type | Electromechanical pressure switch |
| 20000 psi | Maximum pressure |
| Terminal block type | 4 screw terminals |
| NEMA degree of protection | NEMA 1 conforming to UL 50 |
Telemecanique Electromechanical Pressure Switch 9012GQG3 Technical Specifications
| Specification | Value |
|---|---|
| Pressure sensor type | Electromechanical pressure switch |
| Pressure sensor name | 9012G |
| Maximum pressure | 20000 psi |
| Contacts type and composition | NC-NO, SPDT, Form C, snap action, silver nickel contacts |
| Controlled fluid | Selected corrosive liquids (-15-250 Β°F), non-corrosive liquids, air, non-corrosive gas |
| Fluid connection type | 0.25 inch 18 NPTF conforming to UL 508 |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Scale type | Adjustable differential |
| Local display | Without |
| Cable entry | 0.5 inch NPT conduit entrance |
| Terminal block type | 4 screw terminals |
| Electrical connection | Screw-clamp terminals, AWG 22...AWG 12 |
| Electrical circuit type | Control circuit |
| Local signalling | Without: |
| Setting | Internal |
| Enclosure material | Thermoplastic |
| Pressure actuator | Piston |
| Operating position | Any position |
| Materials in contact with fluid | Viton fluorocarbon |
| Operating rate | 120 cyc/mn |
| Vibration resistance | 2 gn (f= 40-150 Hz) conforming to IEC 68-2-6 |
| Shock resistance | 50 gn conforming to IEC 58-2-27 |
| NEMA degree of protection | NEMA 1 conforming to UL 50 |
Send Your Inquiry for Telemecanique 9012GQG3 Electromechanical Pressure Switch with cost-effective solutions. This switch features a maximum pressure capacity of 20000 psi and operates with a Regulation between 2 thresholds. It has an Adjustable differential scale and uses NC-NO, SPDT, Form C, snap action, silver nickel contacts for reliable performance.
Key specifications include fluid connection 0.25 inch 18 NPTF conforming to UL 508 standards, an 4 screw terminals block, and Screw-clamp terminals, AWG 22...AWG 12 wires. The cable entry is a 0.5 inch NPT conduit entrance, and the Piston Pressure actuator, with Thermoplastic insulation for contact durability. It also features Viton fluorocarbon materials for fluid contact and an operating rate of 120 cyc/mn. Capture the Best Deal with a Quote for your requirement of Telemecanique 9012GQG3 Electromechanical Pressure Switch. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
