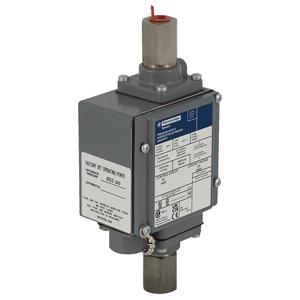

Telemecanique 9012GJW1 Electromechanical Pressure Switch
Technical Specifications of Telemecanique Pressure Switch 9012GJW1:
| Pressure sensor type | Electromechanical pressure switch |
| 7500 psi | Maximum pressure |
| Terminal block type | 4 screw terminals |
| NEMA degree of protection | NEMA 4/4X/13 conforming to UL 50 |
Telemecanique Electromechanical Pressure Switch 9012GJW1 Technical Specifications
| Specification | Value |
|---|---|
| Pressure sensor type | Electromechanical pressure switch |
| Pressure sensor name | 9012G |
| Maximum pressure | 7500 psi |
| Contacts type and composition | NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts |
| Controlled fluid | Hydraulic oil (-15-250 °F), non-corrosive liquids, air, non-corrosive gas |
| Fluid connection type | 0.25 inch 18 NPTF conforming to UL 508 |
| Pressure switch type of operation | Monitors the difference between 2 thresholds |
| Scale type | Adjustable differential |
| Local display | Without |
| Cable entry | 0.5 inch NPT conduit entrance |
| Terminal block type | 4 screw terminals |
| Electrical connection | Screw-clamp terminals, AWG 22...AWG 12 |
| Electrical circuit type | Control circuit |
| Local signalling | Without: |
| Setting | Internal |
| Enclosure material | Die cast aluminium alloy 380 |
| Pressure actuator | Piston |
| Operating position | Any position |
| Materials in contact with fluid | Nitrile (Buna-N) |
| Operating rate | 120 cyc/mn |
| Vibration resistance | 2 gn (f= 40-150 Hz) conforming to IEC 68-2-6 |
| Shock resistance | 50 gn conforming to IEC 58-2-27 |
| NEMA degree of protection | NEMA 4/4X/13 conforming to UL 50 |
Give Us a Call for Telemecanique 9012GJW1 Electromechanical Pressure Switch at the lowest pricing. This switch features a maximum pressure capacity of 7500 psi and operates with a Monitors the difference between 2 thresholds. It has an Adjustable differential scale and uses NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts for reliable performance.
Key specifications include fluid connection 0.25 inch 18 NPTF conforming to UL 508 standards, an 4 screw terminals block, and Screw-clamp terminals, AWG 22...AWG 12 wires. The cable entry is a 0.5 inch NPT conduit entrance, and the Piston Pressure actuator, with Die cast aluminium alloy 380 insulation for contact durability. It also features Nitrile (Buna-N) materials for fluid contact and an operating rate of 120 cyc/mn. Elevate Your Project with a Quote for your requirement of Telemecanique 9012GJW1 Electromechanical Pressure Switch. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
