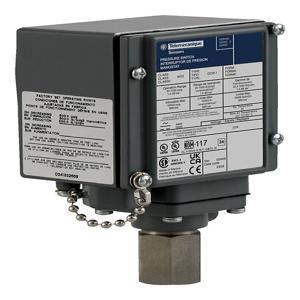

Telemecanique 9012GFW3 Electromechanical Pressure Switch
Technical Specifications of Telemecanique Pressure Switch 9012GFW3:
| Pressure sensor type | Electromechanical pressure switch |
| 20000 psi | Maximum pressure |
| Terminal block type | 4 screw terminals |
| NEMA degree of protection | NEMA 4/4X/13 conforming to UL 50 |
Telemecanique Electromechanical Pressure Switch 9012GFW3 Technical Specifications
| Specification | Value |
|---|---|
| Pressure sensor type | Electromechanical pressure switch |
| Pressure sensor name | 9012G |
| Maximum pressure | 20000 psi |
| Contacts type and composition | NC-NO, 2 SPDT-DB, Form Z, snap action, silver nickel contacts |
| Controlled fluid | Hydraulic oil (-15-250 Β°F), non-corrosive liquids (-15-250 Β°F), air (-15-250 Β°F), non-corrosive gas (-15-250 Β°F) |
| Fluid connection type | 0.25 inch 18 NPTF conforming to UL 508 |
| Pressure switch type of operation | Detection of 1 single threshold |
| Scale type | Fixed |
| Local display | Without |
| Cable entry | 0.5 inch NPT conduit entrance |
| Terminal block type | 4 screw terminals |
| Electrical connection | Screw-clamp terminals, AWG 22...AWG 12 |
| Electrical circuit type | Control circuit |
| Local signalling | Without: |
| Setting | Internal |
| Enclosure material | Die cast aluminium alloy 380 |
| Pressure actuator | Piston |
| Operating position | Any position |
| Materials in contact with fluid | Zinc plated steel |
| Operating rate | 120 cyc/mn |
| Vibration resistance | 2 gn (f= 40-150 Hz) conforming to IEC 68-2-6 |
| Shock resistance | 50 gn conforming to IEC 58-2-27 |
| NEMA degree of protection | NEMA 4/4X/13 conforming to UL 50 |
Call us for Telemecanique 9012GFW3 Electromechanical Pressure Switch at the lowest pricing. This switch features a maximum pressure capacity of 20000 psi and operates with a Detection of 1 single threshold. It has an Fixed scale and uses NC-NO, 2 SPDT-DB, Form Z, snap action, silver nickel contacts for reliable performance.
Key specifications include fluid connection 0.25 inch 18 NPTF conforming to UL 508 standards, an 4 screw terminals block, and Screw-clamp terminals, AWG 22...AWG 12 wires. The cable entry is a 0.5 inch NPT conduit entrance, and the Piston Pressure actuator, with Die cast aluminium alloy 380 insulation for contact durability. It also features Zinc plated steel materials for fluid contact and an operating rate of 120 cyc/mn. Capture the Best Deal with a Quote for your requirement of Telemecanique 9012GFW3 Electromechanical Pressure Switch. Our promise: More affordable pricing and more personalized support than other Dealers.
