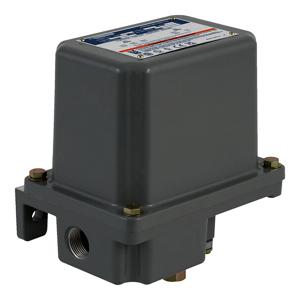

Telemecanique 9012GCR2 Electromechanical Pressure Switch
Technical Specifications of Telemecanique Pressure Switch 9012GCR2:
| Pressure sensor type | Electromechanical pressure switch |
| 15000 psi | Maximum pressure |
| Terminal block type | 4 screw terminals |
| NEMA degree of protection | NEMA 7/9 conforming to UL 698 |
Telemecanique Electromechanical Pressure Switch 9012GCR2 Technical Specifications
| Specification | Value |
|---|---|
| Pressure sensor type | Electromechanical pressure switch |
| Pressure sensor name | 9012G |
| Maximum pressure | 15000 psi |
| Contacts type and composition | NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts |
| Controlled fluid | Hydraulic oil (-15-250 ยฐF), non-corrosive liquids (-15-250 ยฐF), air (-15-250 ยฐF), non-corrosive gas (-15-250 ยฐF) |
| Fluid connection type | 0.25 inch 18 NPTF conforming to UL 508 |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Scale type | Adjustable differential |
| Local display | Without |
| Cable entry | 0.5 inch NPT conduit entrance |
| Terminal block type | 4 screw terminals |
| Electrical connection | Screw-clamp terminals, AWG 22...AWG 12 |
| Electrical circuit type | Control circuit |
| Local signalling | Without: |
| Setting | Internal |
| Enclosure material | Cast aluminium |
| Pressure actuator | Piston |
| Operating position | Any position |
| Materials in contact with fluid | 303 stainless steel |
| Operating rate | 120 cyc/mn |
| Vibration resistance | 2 gn (f= 40-150 Hz) conforming to IEC 68-2-6 |
| Shock resistance | 50 gn conforming to IEC 58-2-27 |
| NEMA degree of protection | NEMA 7/9 conforming to UL 698 |
Ask for the Pricing of Telemecanique 9012GCR2 Electromechanical Pressure Switch at unbeatable prices. This switch features a maximum pressure capacity of 15000 psi and operates with a Regulation between 2 thresholds. It has an Adjustable differential scale and uses NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts for reliable performance.
Key specifications include fluid connection 0.25 inch 18 NPTF conforming to UL 508 standards, an 4 screw terminals block, and Screw-clamp terminals, AWG 22...AWG 12 wires. The cable entry is a 0.5 inch NPT conduit entrance, and the Piston Pressure actuator, with Cast aluminium insulation for contact durability. It also features 303 stainless steel materials for fluid contact and an operating rate of 120 cyc/mn. Now's the Time to Secure a Quote for your requirement of Telemecanique 9012GCR2 Electromechanical Pressure Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
