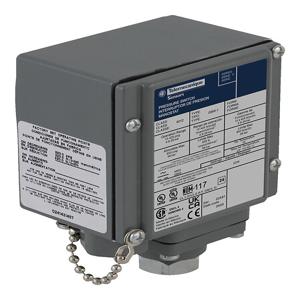

Telemecanique 9012GAWM5 Electromechanical Pressure Switch

Technical Specifications of Telemecanique Pressure Switch 9012GAWM5:

Pressure sensor type	Electromechanical pressure switch
475 psi	Maximum pressure
Terminal block type	4 screw terminals
NEMA degree of protection	NEMA 4/4X/13 conforming to UL 50

Telemecanique Electromechanical Pressure Switch 9012GAWM5 Technical Specifications

Specification	Value
Pressure sensor type	Electromechanical pressure switch
Pressure sensor name	9012G
Maximum pressure	475 psi
Contacts type and composition	NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts
Controlled fluid	Hydraulic oil (-40-250 °F), non-corrosive liquids, air, non-corrosive gas
Fluid connection type	0.25 inch BS2779 parallel pipe thread conforming to UL 508
Pressure switch type of operation	Regulation between 2 thresholds
Scale type	Adjustable differential
Local display	Without
Cable entry	20 mm BS4568 conduit entrance
Terminal block type	4 screw terminals
Electrical connection	Screw-clamp terminals, AWG 22...AWG 12
Electrical circuit type	Control circuit
Local signalling	Without:
Setting	Internal
Enclosure material	Die cast aluminium alloy 380
Pressure actuator	Diaphragm nitrile (Buna-N)
Operating position	Any position
Materials in contact with fluid	Nitrile (Buna-N)
Operating rate	120 cyc/mn
Vibration resistance	2 gn (f= 40-150 Hz) conforming to IEC 68-2-6
Shock resistance	50 gn conforming to IEC 58-2-27
NEMA degree of protection	NEMA 4/4X/13 conforming to UL 50

Mail Us for Telemecanique 9012GAWM5 Electromechanical Pressure Switch at unbeatable prices. This switch features a maximum pressure capacity of 475 psi and operates with a Regulation between 2 thresholds. It has an Adjustable differential scale and uses NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts for reliable performance. Key specifications include fluid connection 0.25 inch BS2779 parallel pipe thread conforming to UL 508 standards, an 4 screw terminals block, and Screw-clamp terminals, AWG 22...AWG 12 wires. The cable entry is a 20 mm BS4568 conduit entrance, and the Diaphragm nitrile (Buna-N) Pressure actuator, with Die cast aluminium alloy 380 insulation for contact durability. It also features Nitrile (Buna-N) materials for fluid contact and an operating rate of 120 cyc/mn. Elevate Your Project with a Quote for your requirement of Telemecanique 9012GAWM5 Electromechanical Pressure Switch. Count on us for more economical pricing and more reliable support than other Traders & Suppliers.
