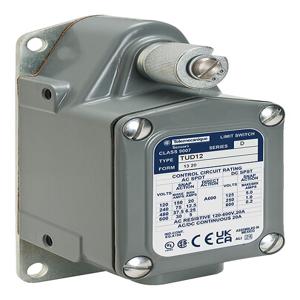

Telemecanique 9007TUD4M12: Limit Switch Lever
Technical Specifications of Telemecanique Limit Switch 9007TUD4M12:
| Product or component type | - |
| Switch actuation | CW and CCW |
| IP degree of protection | IP65, IP66, IP67 |
| Contacts material | Silver flashed copper |
Telemecanique Limit Switch Lever 9007TUD4M12 Technical Specifications
| Specification | Value |
|---|---|
| Series name | Severe duty |
| Product or component type | - |
| Device short name | T |
| Movement of operating head | - |
| Type of operator | Spring return lever arm, spring return to be ordered separately |
| Type of roller | - |
| Type of approach | - |
| Positive opening | Without |
| Switch actuation | CW and CCW |
| Environmental characteristic | - |
| Range of product | - |
| Device application | Universal mill switch |
| Body type | - |
| Head type | Rotary head |
| Base plate style | Style D |
| Body material | Cast zinc |
| Fixing mode | - |
| Function available | - |
| Electrical connection | Screw clamp terminal AWG 22...AWG 12 |
| Cable entry | 1 entry for Pg 13.5 conforming to UL 508 |
| Switch function | SPDT-DB |
| Contact operation | Snap action |
| Contact form | Form Z |
| Contacts material | Silver flashed copper |
| Contacts usage | - |
| Contact code designation | A600, Q600 |
| Terminals description ISO nΒ°1 | - |
| Shock resistance | 30 gn |
| Vibration resistance | 10 gn (f= 10-55 Hz) |
| NEMA degree of protection | NEMA 1/2/4/12/13 |
| IP degree of protection | IP65, IP66, IP67 |
| Electrical shock protection class | Class 0 |
| Protective treatment | Corrosion resistant gray paint |
| Contact status | Closed A for CCW position, open A for CW position, open B for CCW position, closed B for CW position |
