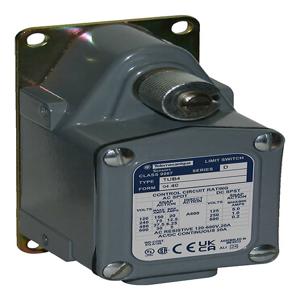

Telemecanique 9007TUB5M12: Limit Switch Lever
Technical Specifications of Telemecanique Limit Switch 9007TUB5M12:
| Product or component type | Limit switch |
| Switch actuation | From right |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Contacts material | Silver flashed copper |
Telemecanique Limit Switch Lever 9007TUB5M12 Technical Specifications
| Specification | Value |
|---|---|
| Series name | Severe duty mill |
| Product or component type | Limit switch |
| Device short name | 9007T/FT |
| Movement of operating head | Rotary |
| Type of operator | Spring return without operating lever |
| Type of roller | - |
| Type of approach | Lateral approach |
| Positive opening | Without |
| Switch actuation | From right |
| Environmental characteristic | - |
| Range of product | 9007 |
| Device application | Universal mill switch |
| Body type | Fixed |
| Head type | Rotary head |
| Base plate style | Style B |
| Body material | Cast zinc |
| Fixing mode | By the body |
| Function available | Not applicable |
| Electrical connection | Screw-clamp terminals AWG 22...AWG 12 |
| Cable entry | 1 entry for Pg 13.5 conforming to DIN 40430 |
| Switch function | SPDT-DB |
| Contact operation | Snap action |
| Contact form | Form Z |
| Contacts material | Silver flashed copper |
| Contacts usage | Not applicable |
| Contact code designation | A600, AC (Ue = 600 V) Ie = 5 A conforming to NEMA rating designation, A600, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation, A600, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation, A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation, P600, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation, P600, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation, P600, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation |
| Terminals description ISO nΒ°1 | B (right side contact) |
| Shock resistance | 30 gn for 9 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 10 gn (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection | NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Electrical shock protection class | Class 0 conforming to IEC 61140 |
| Protective treatment | Corrosion resistant gray paint |
| Contact status | - |
