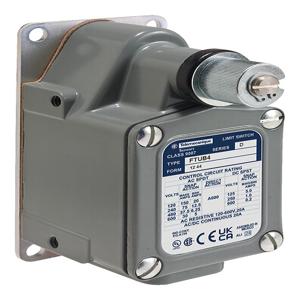

Telemecanique Limit Switch Lever 9007FTUB4M11 Technical Specifications
Specification
Value
Series name
Severe duty foundry
Product or component type
Limit switch
Device short name
9007T/FT
Movement of operating head
Rotary
Type of operator
Spring return without operating lever
Type of roller
-
Type of approach
Lateral approach
Positive opening
Without
Switch actuation
From left or right
Environmental characteristic
-
Range of product
9007
Device application
Universal foundry switch
Body type
Fixed
Head type
Rotary head
Base plate style
Style B
Body material
Cast zinc
Fixing mode
By the body
Function available
Neutral position
Electrical connection
Screw-clamp terminals AWG 22...AWG 12
Cable entry
1 entry for M20 - 20 mm conforming to BS 4568
Switch function
SPDT-DB
Contact operation
Snap action
Contact form
Form Z
Contacts material
Silver flashed copper
Contacts usage
Not applicable
Contact code designation
A600, AC (Ue = 600 V) Ie = 5 A conforming to NEMA rating designation,
A600, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation,
A600, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation,
A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation,
P600, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation,
P600, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation,
P600, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation
Terminals description ISO nΒ°1
B (right side contact)
Shock resistance
30 gn for 9 ms conforming to IEC 60068-2-27
Vibration resistance
10 gn (f= 10-55 Hz) conforming to IEC 60068-2-6
NEMA degree of protection
NEMA 1 conforming to Nema type 250,
NEMA 2 conforming to Nema type 250,
NEMA 4 conforming to Nema type 250,
NEMA 12 conforming to Nema type 250,
NEMA 13 conforming to Nema type 250
