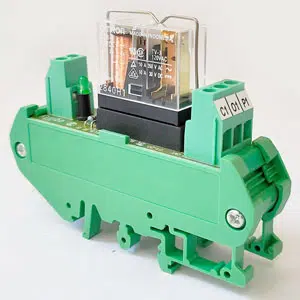

Single Channel Relay Module - AE-01-024D-1-B (G2R)
Technical Specifications of Agility Single Channel Relay Module AE-01-024D-1-B (G2R)
| Spec | Value |
|---|---|
| Brand | Agility |
| Product Type | Relay Board |
| Product | AE-01-024D-1-B (G2R) |
Agility AE-01-024D-1-B (G2R) Single Channel Relay Module Technical Specifications:
| Specification | Value |
|---|---|
| Board Manufactures | Agility |
| Channels | 1 |
| Coil Voltage | 24VDC |
| Switching Current | 10A at 30VDC/250VAC |
| Contact Type 1C/O SPDT | 1C/O SPDT |
| Relay Make | OMRON G2R Series |
| Relay Actuation | LED Indication |
| Relay Coil Protection | Freewheeling Diode |
| Mounting | Universal DIN Rail |
| Input indication | 3 mm green LED for input status |
| Rated coil current | 21.8mA |
| Power consumption | Approx. 530mW |
| Must operate voltage | 80% max. of rated voltage |
| Must release voltage | 30% max. of rated voltage |
| Contact material | Ag-alloy (Cd free) |
| Maximum switching voltage | 380V AC, 125V DC |
| Contact resistance | 30mOhm max. |
| Operate time | 15 ms max |
| Release time | DC: 5 ms max. & AC: 10 ms max |
| Maximum voltage | 140% at 23°C |
| Ambient operating temperature | 0°C to 50°C |
| Housing material | PVC/V0 Grade, Phoenix Contact or equivalent |
| Housing color | Green |
| Conformal coating | Insulate, protect, and seal electronic parts, available on request |
| Dimension LxWxH (mm) | 21 x 90 x 68 |
| Coil resistance (Ohms) | 1100 |
| RoHS compliant | All the components used including PCBs are RoHS approved |
