Siemens Power Supply - 24 VDC SITOP Power Supplies
Siemens Power Supply units deliver stabilized DC output by converting AC or DC input into defined voltage and current levels for automation applications. These devices regulate output characteristics through controlled switching stages, feedback loops, and protective functions that maintain power quality for connected industrial loads. Their operation includes voltage stabilization, overload response, thermal monitoring, and ripple control required for reliable equipment operation.
The Siemens Power Supply, manufactured by Siemens, provides a regulated DC output using rectification stages, switching transistors, and closed-loop control structures within Siemens automation systems. Technical attributes include rated output voltage, load current capability, input tolerance ranges, protection limits, and ratings applicable to operation. These power supplies support DIN-rail or panel mounting formats and interface with controllers, sensors, and field devices through terminal structures. As an entity, a Siemens Power Supply is defined by electronic conversion technology, supply-module structure, output-regulation classification attributes, and standardized installation interfaces.

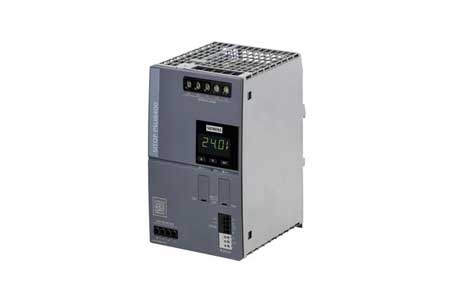

Siemens Power Supply: SITOP PSU8400
High Efficiency: Achieves up to 96% efficiency, minimizing energy loss.
- Compact Design: Occupies minimal space with a 99 mm width and no need for lateral clearances.
- IO-Link Communication: Allows for remote parameterization, monitoring, and integration with automation systems.
- Enhanced Monitoring: Features integrated diagnostics and remote control capabilities.
- Extended System Protection: Compatible with add-ons for UPS, selectivity, and redundancy to enhance system reliability.

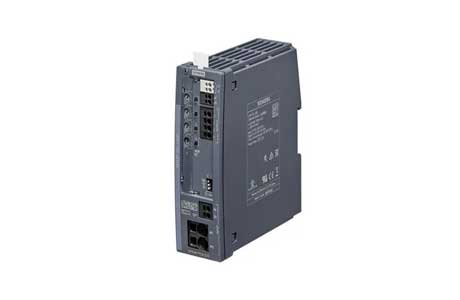

Siemens 24VDC Power Supply:Selectivity Module for48VDC
Designed to enhance system reliability by protecting against power issues and faulty loads.
- Enables selective disconnection of faulty circuits to prevent total system shutdowns.
- Features redundancy modules that provide uninterrupted power through dual configurations.
- Includes selectivity modules that offer precise fault localization and protection.
- Compatible with both 24V and 48V DC power supplies, allowing for flexible integration into existing systems.
Siemens Power Supplies:SITOP PSU4200
Available in single and three-phase versions with outputs ranging from 3 to 20 A.
- Features high efficiency up to 93%, reducing power consumption and operational costs.
- Compact design allows integration into small control panels without the need for lateral clearances.
- Operates in a wide temperature range from -25°C to +70°C, with minimal performance reduction above +60°C.
- Uses active Power Factor Correction (PFC) in the 1-phase 20 A model to minimize reactive power.
The Siemens SITOP power supply series encompasses a versatile lineup tailored to meet the demands of industrial applications, ensuring reliability and efficiency. Key offerings include the SITOP PSU8400, known for its high efficiency of up to 96% and compact design that facilitates seamless integration with automation systems through IO-Link communication. It also includes diagnostic and monitoring capabilities to streamline maintenance.
The SITOP PSU4200 series is available in both single and three-phase outputs, catering to a range of power needs with capacities from 3 to 20 A, and boasting efficiencies up to 93%. Additionally, Siemens provides essential add-on modules that enhance system reliability with features such as DC UPS, buffer modules, and selectivity modules for precise fault localization and circuit protection. These power supplies are compatible with a variety of industrial environments and are particularly effective in minimizing operational disruptions and extending device service life due to their optimal design and heat dissipation properties.
Frequently Asked Questions
What is a sitop power supply?
A SITOP power supply is a compact and efficient unit designed primarily for the lower power range in industrial environments. It offers a space-saving solution that ensures reliable power for various applications. SITOP is known for its robustness and ability to handle challenging conditions while providing stable voltage and current.
What voltage is Siemens logo supply?
The Siemens LOGO! supply models, LOGO! 24 and LOGO! 24R, are designed for a 24 V DC supply voltage. They operate effectively within a voltage range of 20.4 V to 28.8 V, ensuring versatility and reliability in providing power under varying electrical conditions.
Does SMPS convert AC to DC?
Yes, an SMPS (Switched-Mode Power Supply) converts AC (Alternating Current) to DC (Direct Current). It uses a rectifier to change AC into DC, followed by an input filter to smooth the output, ensuring stable DC voltage for use in various electronic devices. This process enhances power efficiency and reduces heat generation.
