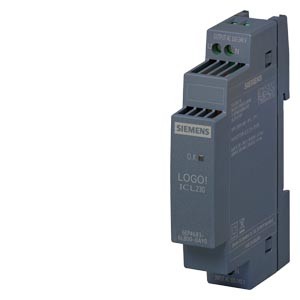

Siemens 6EP4683-6LB00-0AY0 Power Supplies
Siemens 6EP4683-6LB00-0AY0 Power Supplies
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6EP4683-6LB00-0AY0 |
Siemens 6EP4683-6LB00-0AY0 Power Supplies – Technical Specifications
| Specification | Value |
|---|
| Type of the power supply network | 1-phase AC |
| minimum rated value | 100 V |
| maximum rated value | 240 V |
| initial value | 85 V |
| full-scale value | 264 V |
| rated range | 0 ... 5 A; Active current limitation for 60 ms to 10 A during switch-on. |
| protection class IP | IP20 |
| during transport | 40 ... +85 °C |
| during storage | 40 ... +85 °C |
| type of electrical connection | screw terminal |
| width × height × depth of the enclosure | 18 × 90 × 53 mm |
| installation width × mounting height | 18 mm × 130 mm |
| Top | 20 mm |
| Bottom | 20 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 0.14 kg |
