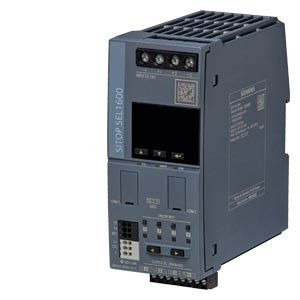

Siemens 6EP4437-8FB00-4CY0 Power Supplies
Siemens 6EP4437-8FB00-4CY0 Power Supplies
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6EP4437-8FB00-4CY0 |
Siemens 6EP4437-8FB00-4CY0 Power Supplies – Technical Specifications
| Specification | Value |
|---|
| Type of the power supply network | Controlled DC voltage |
| input voltage at DC | 20.4 ... 30 V |
| protection class IP | IP20 |
| during transport | 40 ... +85 |
| during storage | 40 ... +85 |
| type of electrical connection | Screw-type terminals and Push-in |
| width × height × depth of the enclosure | 63 × 145 × 125 mm |
| installation width × mounting height | 63 mm × 225 mm |
| Top | 40 mm |
| Bottom | 40 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 0.4 kg |
