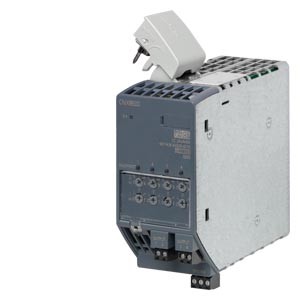

Siemens 6EP4436-8XB00-0CY0 Power Supplies

Name: Siemens 6EP4436-8XB00-0CY0
Brand: Siemens
SKU: 6EP4436-8XB00-0CY0
Rating: 4.6 (4 reviews)

The Siemens 6EP4436-8XB00-0CY0 Power Supplies delivers 20 A output, 480 W power, and four monitored outputs for industrial power distribution. It provides relay-based “device OK” signaling, supports PROFINET diagnostics through the PSU8600 unit, and includes IP20 protection with plug-in screw terminals. The device features a compact 60 × 125 × 150 mm enclosure and DIN rail fastening, aligning with the Siemens brand and the Siemens Power Supplies category within the SITOP Series, with storage and transport capability from −40 to +85 °C.

Datasheet

Brand	Siemens
Product Type	Power Supplies
Model Number	6EP4436-8XB00-0CY0

Siemens 6EP4436-8XB00-0CY0 Power Supplies – Technical Specifications

Specification	Value
number of outputs	4
type of signal at output	Relay contact (changeover contact, contact current capacity DC 60 V/0.3 A) for "Operating state OK" at power supply unit PSU8600
rated value	20 A
rated range	0 ... 20 A; No increase in the maximum output power of the overall system SITOP PSU8600 via the expansion module SITOP CNX8600 possible
supplied active power typical	480 W
design of the interface	Ethernet/PROFINET via power supply unit PSU8600
protection class IP	IP20
during transport	40 ... +85 °C
during storage	40 ... +85 °C
type of electrical connection	Plug-in terminals with screwed connection
width × height × depth of the enclosure	60 × 125 × 150 mm
installation width × mounting height	60 mm × 225 mm
Top	50 mm
Bottom	50 mm
Left	0 mm
Right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35x15
net weight	1.15 kg
