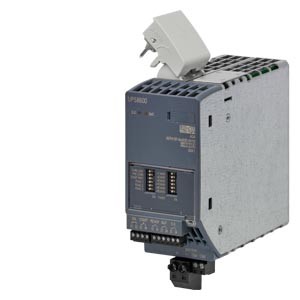

Siemens 6EP4197-8AB00-0XY0 Power Supplies

Name: Siemens 6EP4197-8AB00-0XY0
Brand: Siemens
SKU: 6EP4197-8AB00-0XY0
Rating: 4.5 (4 reviews)

The Siemens 6EP4197-8AB00-0XY0 Power Supplies provides 960 W output power, relay signaling, and IP20 protection for industrial automation use. It includes plug-in screw terminals, supports −40 to +85 °C transport and storage, and snaps onto DIN rail EN 60715 for secure mounting. This unit is part of the Siemens brand and the Siemens Power Supplies category within the SITOP Series, featuring a 60 × 125 × 150 mm enclosure and a 0.9 kg weight.

Datasheet

Brand	Siemens
Product Type	Power Supplies
Model Number	6EP4197-8AB00-0XY0

Siemens 6EP4197-8AB00-0XY0 Power Supplies – Technical Specifications

Specification	Value
type of signal at output	relay contacts (NO contact, contact rating DC 60 V/0.3 A) for "sufficient buffer readiness", "buffer mode" and "battery circuit fault"
supplied active power typical	960 W
design of the interface	Ethernet/PROFINET via power supply unit PSU8600
protection class IP	IP20
during transport	40 ... +85
during storage	40 ... +85
type of electrical connection	Plug-in terminals with screwed connection
width × height × depth of the enclosure	60 × 125 × 150 mm
installation width × mounting height	60 mm × 225 mm
Top	50 mm
Bottom	50 mm
Left	0 mm
Right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35x15
net weight	0.9 kg

Siemens 6EP4197-8AB00-0XY0 Power Supplies

Siemens 6EP4197-8AB00-0XY0 Power Supplies – Technical Specifications
