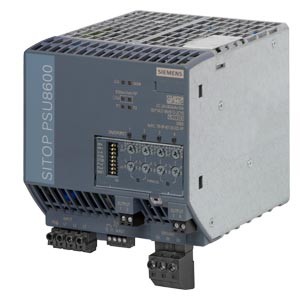

Siemens 6EP3437-8MB10-2CY0 Power Supplies – Technical Specifications
Specification
Value
Type of the power supply network
3-phase AC
minimum rated value
400 V
maximum rated value
500 V
initial value
320 V
full-scale value
575 V
line frequency
50/60 Hz
line frequency (2)
47 ... 63 Hz
number of outputs
4
type of signal at output
Relay contact (changeover contact, contact current capacity DC 60 V/0.3 A) for "Operating state OK"
rated value
40 A
rated range
0 ... 40 A; +50 ... +60 °C: Derating 2.5%/K; no derating in connection with expansion module CNX8600 and total load of the outputs at the basic device max. 480 W
