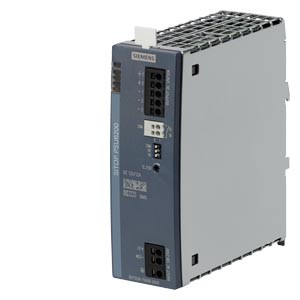

Siemens 6EP3324-7SB00-3AX0 Power Supplies

Name: Siemens 6EP3324-7SB00-3AX0
Brand: Siemens
SKU: 6EP3324-7SB00-3AX0
Rating: 4.5 (4 reviews)

The Siemens 6EP3324-7SB00-3AX0 Power Supplies provides 12 A output and 144 W power for stable industrial 24 V DC applications. It operates from 120–240 V input with an 85–264 V usable range across 47–63 Hz and supports an electronic NO contact for DC O.K. diagnostics. With push-in terminals, IP20 protection, and a 45 × 135 × 125 mm enclosure, it fits compact control panels and DIN-rail layouts. This model is part of the Siemens lineup, the Siemens Power Supplies category, and the SITOP Series.

Datasheet

Brand	Siemens
Product Type	Power Supplies
Model Number	6EP3324-7SB00-3AX0

Siemens 6EP3324-7SB00-3AX0 Power Supplies – Technical Specifications

Specification	Value
Type of the power supply network	1-phase AC or DC
minimum rated value	120 V
maximum rated value	240 V
initial value	85 V
full-scale value	264 V
supply voltage at DC	110 ... 240 V
input voltage at DC	85 ... 275 V
line frequency	50/60 Hz
line frequency (2)	47 ... 63 Hz
number of outputs	1
type of signal at output	Electronic contact (NO contact, contact rating 30 V DC/0.1 A) for DC O.K. or diagnostic interface
rated value	12:00 AM
rated range	0 ... 12 A; 14.4 A up to +45°C; +60 ... +70 °C: Derating 3%/K
supplied active power typical	144 W
protection class IP	IP20
during transport	40 ... +85 °C
during storage	40 ... +85 °C
type of electrical connection	push-in terminals
width × height × depth of the enclosure	45 × 135 × 125 mm
installation width × mounting height	45 mm × 225 mm
Top	45 mm
Bottom	45 mm
Left	0 mm
Right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35x7.5/15
net weight	0.9 kg
