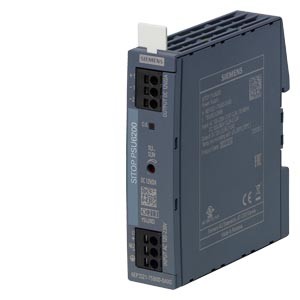

Siemens 6EP3321-7SB00-0AX0 Power Supplies

The Siemens 6EP3321-7SB00-0AX0 Power Supplies delivers 2 A output and 24 W power for single-phase or DC industrial applications. It supports 120–240 V input with a usable range from 85 to 264 V across 47–63 Hz and includes push-in terminal connections for compact panel installation. The unit provides IP20 protection, a 25 × 100 × 88 mm enclosure, and DIN-rail mounting compatibility for space-limited control cabinets. This model integrates into the Siemens lineup, the Siemens Power Supplies category, and the SITOP Series.

BrandSiemens
Product TypePower Supplies
Model Number6EP3321-7SB00-0AX0

Siemens 6EP3321-7SB00-0AX0 Power Supplies – Technical Specifications

SpecificationValue
Type of the power supply network1-phase AC or DC
minimum rated value120 V
maximum rated value240 V
initial value85 V
full-scale value264 V
supply voltage at DC120 ... 240 V
input voltage at DC110 ... 275 V
line frequency50/60 Hz
line frequency (2)47 ... 63 Hz
number of outputs1
rated value2:00 AM
rated range0 ... 2 A
supplied active power typical24 W
protection class IPIP20
during transport40 ... +85 °C
during storage40 ... +85 °C
type of electrical connectionpush-in terminals
width × height × depth of the enclosure25 × 100 × 88 mm
installation width × mounting height25 mm × 200 mm
Top50 mm
Bottom50 mm
Left0 mm
Right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
net weight0.2 kg
