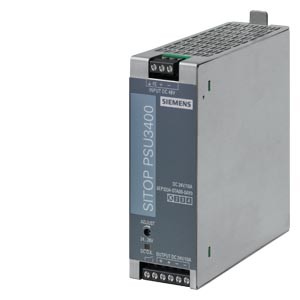

Siemens 6EP3234-0TA00-0AY0 Power Supplies
Siemens 6EP3234-0TA00-0AY0 Power Supplies
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6EP3234-0TA00-0AY0 |
Siemens 6EP3234-0TA00-0AY0 Power Supplies – Technical Specifications
| Specification | Value |
|---|
| Type of the power supply network | DC voltage |
| supply voltage at DC | 48 ... 48 V |
| input voltage at DC | 28 ... 60 V |
| type of signal at output | Relay contact (NO contact, contact rating 30 V AC/0.5 A; 60 V DC/0.3 A; 30 V DC/1 A) for 24 V O.K. |
| rated value | 10:00 AM |
| rated range | 0 ... 12.5 A; 12 A up to +40°C; +60 ... +70 °C: Derating 2%/K |
| supplied active power typical | 256 W |
| protection class IP | IP20 |
| during transport | 40 ... +85 °C |
| during storage | 40 ... +85 °C |
| type of electrical connection | screw terminal |
| width × height × depth of the enclosure | 42 × 125 × 120 mm |
| installation width × mounting height | 42 mm × 225 mm |
| Top | 50 mm |
| Bottom | 50 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 0.6 kg |
