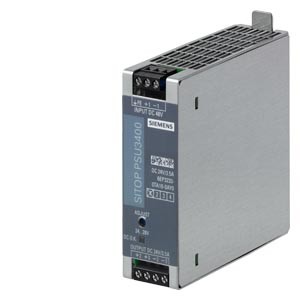

Siemens 6EP3233-0TA10-0AY0 Power Supplies
Siemens 6EP3233-0TA10-0AY0 Power Supplies
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6EP3233-0TA10-0AY0 |
Siemens 6EP3233-0TA10-0AY0 Power Supplies – Technical Specifications
| Specification | Value |
|---|
| Type of the power supply network | DC voltage |
| supply voltage at DC | 48 ... 48 V |
| input voltage at DC | 28 ... 60 V |
| rated value | 3.5 A |
| rated range | 0 ... 3.5 A; +60 to +70 °C: without derating |
| supplied active power typical | 91 W |
| protection class IP | IP20 |
| during transport | 40 ... +85 °C |
| during storage | 40 ... +85 °C |
| type of electrical connection | screw terminal |
| width × height × depth of the enclosure | 32 × 100 × 100 mm |
| installation width × mounting height | 32 mm × 200 mm |
| Top | 50 mm |
| Bottom | 50 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 0.32 kg |
