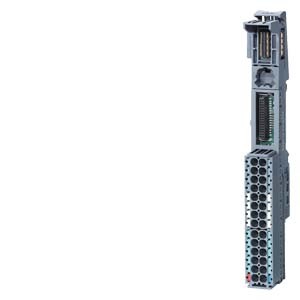

Siemens 6AG2193-6BP20-4BA0 Programmable Logic Controller
Siemens 6AG2193-6BP20-4BA0 Programmable Logic Controller
| Brand | Siemens |
| Product Type | Programmable Logic Controller (PLC) |
| Model Number | 6AG2193-6BP20-4BA0 |
Technical Specifications of Siemens 6AG2193-6BP20-4BA0
| Specification | Value |
|---|
| Product type designation | BU type A0 |
| Isolation tested with | 750 V DC (type test) and according to EN 50155 (routine test) |
| horizontal installation, min. | 40 °C; = Tmin (incl. condensation/frost) |
| horizontal installation, max. | 70 °C; = Tmax; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155) |
| vertical installation, min. | 40 °C; = Tmin |
| vertical installation, max. | 50 °C; = Tmax |
| Installation altitude above sea level, max. | 2 000 m |
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Width | 15 mm |
| Height | 141 mm |
| Depth | 35 mm |
| Weight, approx. | 50 g |
| Terminal type | Push-in terminal |
| Conductor cross-section, min. | 0.14 mm²; AWG 26 |
| Conductor cross-section, max. | 2.5 mm²; AWG 14 |
| Number of process terminals to I/O module | 16 |
| Number of terminals to AUX bus | 10 |
