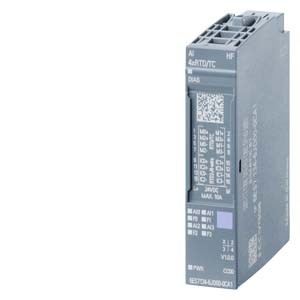

The Siemens 6AG2134-6JD00-1CA1 Programmable Logic Controller features an AI 4xRTD/TC 2-/3-/4-wire HF module with 0.75 W power loss and 750 V DC insulation. It supports 40 °C to 60 °C horizontal operation, offers short-term tolerance up to 70 °C, and functions reliably up to 2,000 m installation altitude in compact 15×73×58 mm dimensions. Discover more about Siemens automation and explore the full Siemens PLC lineup within the ET Series.
Technical Specifications of Siemens 6AG2134-6JD00-1CA1
Specification
Value
Product type designation
AI 4xRTD/TC 2-/3-/4-wire HF
Power loss, typ.
0.75 W
Isolation tested with
750 V DC (type test) and according to EN 50155 (routine test)
horizontal installation, min.
40 °C; = Tmin (incl. condensation/frost)
horizontal installation, max.
60 °C; = Tmax; +70 °C for 10 min (OT2, ST1/ST2 acc. to EN 50155); +70 °C continuously with spacing modules (6AG2193-6BN00-4BA0) or configured slots to the left and right of the module (OT4, ST0 acc. to EN 50155)
vertical installation, min.
40 °C; = Tmin
vertical installation, max.
50 °C; = Tmax
Installation altitude above sea level, max.
2 000 m
Ambient air temperature-barometric pressure-altitude
Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m)
