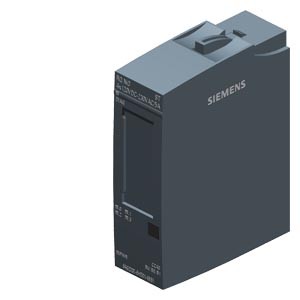

Siemens 6AG2132-6HD01-4BB1 Programmable Logic Controller
Siemens 6AG2132-6HD01-4BB1 Programmable Logic Controller
| Brand | Siemens |
| Product Type | Programmable Logic Controller (PLC) |
| Model Number | 6AG2132-6HD01-4BB1 |
Technical Specifications of Siemens 6AG2132-6HD01-4BB1
| Specification | Value |
|---|
| Product type designation | RQ 4x120 VDC ... 230 VAC/5 A NO ST |
| Power loss, typ. | 1.5 W |
| Isolation tested with | 2 545 V DC (type test) and according to EN 50155 (routine test) |
| horizontal installation, min. | 40 Β°C; = Tmin (incl. condensation/frost) |
| horizontal installation, max. | 70 Β°C; = Tmax; +85 Β°C for 10 min (OT4, ST1/ST2 acc. to EN 50155) |
| vertical installation, min. | 40 Β°C; = Tmin |
| vertical installation, max. | 50 Β°C; = Tmax |
| Installation altitude above sea level, max. | 2 000 m |
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Width | 20 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 40 g |
| Number of digital outputs | 4 |
| Switching current, min. | 100 mA; 5 V DC |
