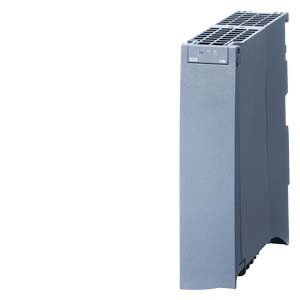

Technical Specifications of Siemens 6AG1522-5HF00-2AB0
Specification
Value
Product type designation
DQ 8x230 V AC/5 A ST (relay)
Power loss, typ.
5 W
Isolation tested with
between the channels: 3 100 V DC; between the channels and the backplane bus: 3 100 V DC; between the channels and the supply voltage L+: 3 100 V DC; between the L+ and the backplane bus: 707 V DC (type test)
horizontal installation, min.
25 Β°C; = Tmin (incl. condensation/frost)
horizontal installation, max.
60 Β°C; = Tmax
vertical installation, min.
25 Β°C; = Tmin
vertical installation, max.
40 Β°C; = Tmax
Installation altitude above sea level, max.
2 000 m
Ambient air temperature-barometric pressure-altitude
Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m)
