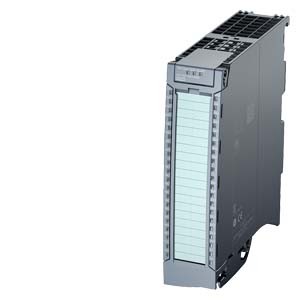

Siemens 6AG1522-5FH00-7AB0 Programmable Logic Controller
Siemens 6AG1522-5FH00-7AB0 Programmable Logic Controller
| Brand | Siemens |
| Product Type | Programmable Logic Controller (PLC) |
| Model Number | 6AG1522-5FH00-7AB0 |
Technical Specifications of Siemens 6AG1522-5FH00-7AB0
| Specification | Value |
|---|
| Product type designation | DQ 16x230VAC/1A ST (Triac) |
| Power loss, typ. | 11.1 W |
| Isolation tested with | 3 100 V DC |
| horizontal installation, min. | 40 °C; = Tmin (incl. condensation/frost); start-up @ -25 °C |
| horizontal installation, max. | 70 °C; = Tmax; see Derating BasedOn (e.g. manual), additionally Tmax > 60 °C max. 4 A aggregate current per module, max. 0.25 A per output |
| vertical installation, min. | 40 °C; = Tmin; Startup @ -25 °C |
| vertical installation, max. | 60 °C |
| Installation altitude above sea level, max. | 2 000 m |
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 310 g |
| Number of digital outputs | 16 |
