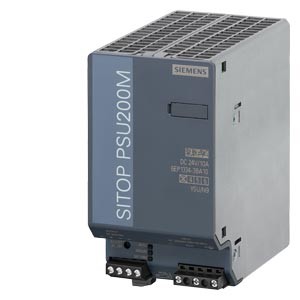

Siemens 6AG1334-3BA10-7AA0 Power Supplies
Siemens 6AG1334-3BA10-7AA0 Power Supplies
| Brand | Siemens |
| Product Type | Power Supplies |
| Model Number | 6AG1334-3BA10-7AA0 |
Siemens 6AG1334-3BA10-7AA0 Power Supplies – Technical Specifications
| Specification | Value |
|---|---|
| Type of the power supply network | 1-phase and 2-phase AC |
| line frequency | 50/60 Hz |
| line frequency (2) | 47 ... 63 Hz |
| rated value | 10:00 AM |
| rated range | 0 ... 10 A; +60 ... +70 °C: Derating 2%/K (at 120 V, 230 V) or 3.5%/K (at 400 V) |
| protection class IP | IP20 |
| during transport | 40 ... +85 °C |
| during storage | 40 ... +85 °C |
| type of electrical connection | screw terminal |
| width × height × depth of the enclosure | 70 × 125 × 121 mm |
| installation width × mounting height | 70 mm × 225 mm |
| Top | 50 mm |
| Bottom | 50 mm |
| Left | 0 mm |
| Right | 0 mm |
| fastening method | Snaps onto DIN rail EN 60715 35x7.5/15 |
| net weight | 0.8 kg |
