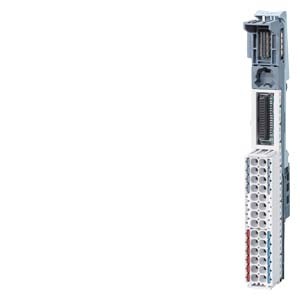

Siemens 6AG1193-6BP40-7DA1 Programmable Logic Controller
Siemens 6AG1193-6BP40-7DA1 Programmable Logic Controller
| Brand | Siemens |
| Product Type | Programmable Logic Controller (PLC) |
| Model Number | 6AG1193-6BP40-7DA1 |
Technical Specifications of Siemens 6AG1193-6BP40-7DA1
| Specification | Value |
|---|
| Product type designation | BU type A1 |
| Isolation tested with | 707 V DC (type test) |
| horizontal installation, min. | 40 °C; = Tmin (incl. condensation/frost) |
| horizontal installation, max. | 70 °C; = Tmax |
| vertical installation, min. | 40 °C; = Tmin |
| vertical installation, max. | 50 °C; = Tmax |
| Installation altitude above sea level, max. | 5 000 m |
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
| Width | 15 mm |
| Height | 141 mm |
| Depth | 35 mm |
| Weight, approx. | 50 g |
| Terminal type | Push-in terminal |
| Conductor cross-section, min. | 0.14 mm²; AWG 26 |
| Conductor cross-section, max. | 2.5 mm²; AWG 14 |
| Number of process terminals to I/O module | 16 |
| Number of add-on terminals | 2x5 |
