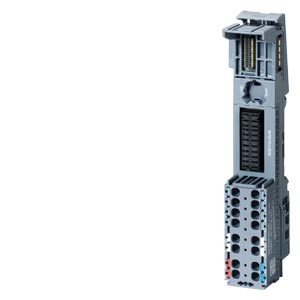

Siemens 6AG1193-6BP20-7BB1 Programmable Logic Controller
Siemens 6AG1193-6BP20-7BB1 Programmable Logic Controller
| Brand | Siemens |
| Product Type | Programmable Logic Controller (PLC) |
| Model Number | 6AG1193-6BP20-7BB1 |
Technical Specifications of Siemens 6AG1193-6BP20-7BB1
| Specification | Value |
|---|
| Product type designation | BU type B1 |
| Isolation tested with | 3 100 V DC |
| horizontal installation, min. | 40 °C; = Tmin (incl. condensation/frost); start-up @ -25 °C |
| horizontal installation, max. | 70 °C; = Tmax |
| vertical installation, min. | 40 °C; = Tmin |
| vertical installation, max. | 50 °C; = Tmax |
| Installation altitude above sea level, max. | 3 000 m |
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... Tmax -5K) at 795 hPa ... 701 hPa (+2 000 m ... +3 000 m) |
| Width | 20 mm |
| Height | 117 mm |
| Depth | 35 mm |
| Weight, approx. | 48 g |
