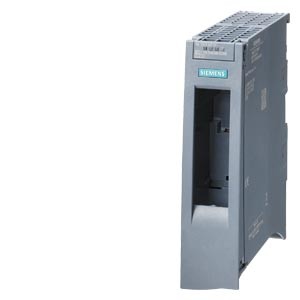

Siemens 6AG1155-5MU00-7CN0 Programmable Logic Controller
Siemens 6AG1155-5MU00-7CN0 Programmable Logic Controller
| Brand | Siemens |
| Product Type | Programmable Logic Controller (PLC) |
| Model Number | 6AG1155-5MU00-7CN0 |
Technical Specifications of Siemens 6AG1155-5MU00-7CN0
| Specification | Value |
|---|
| Product type designation | IM 155-5 MF HF |
| Power loss, typ. | 4.3 W |
| Isolation tested with | 707 V DC (type test) |
| horizontal installation, min. | 40 Β°C; = Tmin (incl. condensation/frost) |
| horizontal installation, max. | 70 Β°C; = Tmax |
| vertical installation, min. | 40 Β°C; = Tmin |
| vertical installation, max. | 40 Β°C; = Tmax |
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weight, approx. | 260 g; without BusAdapter |
