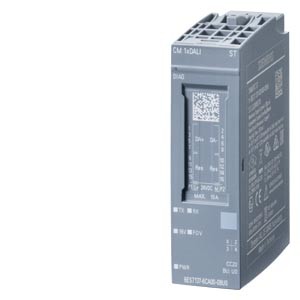

Siemens 6AG1137-6CA00-7BU0 Programmable Logic Controller
Siemens 6AG1137-6CA00-7BU0 Programmable Logic Controller
| Brand | Siemens |
| Product Type | Programmable Logic Controller (PLC) |
| Model Number | 6AG1137-6CA00-7BU0 |
Technical Specifications of Siemens 6AG1137-6CA00-7BU0
| Specification | Value |
|---|
| Product type designation | CM 1xDALI |
| Power loss, typ. | 1.7 W |
| Isolation tested with | 3 000 V AC (type test) |
| horizontal installation, min. | 40 °C; = Tmin (incl. condensation/frost) |
| horizontal installation, max. | 60 °C; = Tmax; +70 °C with spacing modules (6AG1193-6BN00-7BA0) or configured slots to the left and right of the module |
| vertical installation, min. | 40 °C; = Tmin |
| vertical installation, max. | 50 °C; = Tmax |
| Installation altitude above sea level, max. | 3 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Width | 20 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 50 g |
| Cable length, max. | 300 m |
| Supply current, min. | 160 mA |
