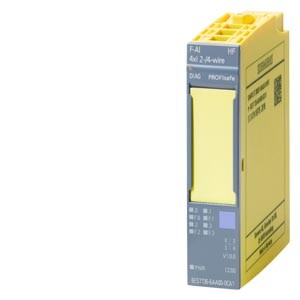

Siemens 6AG1136-6AA00-2CA1 Programmable Logic Controller
Siemens 6AG1136-6AA00-2CA1 Programmable Logic Controller
| Brand | Siemens |
| Product Type | Programmable Logic Controller (PLC) |
| Model Number | 6AG1136-6AA00-2CA1 |
Technical Specifications of Siemens 6AG1136-6AA00-2CA1
| Specification | Value |
|---|
| Product type designation | F-AI 4xI 0(4)..20mA 2-/4-wire HF |
| Power loss, typ. | 2 W |
| Isolation tested with | 707 V DC (type test) |
| horizontal installation, min. | 30 °C; = Tmin (incl. condensation/frost) |
| horizontal installation, max. | 60 °C; = Tmax; +70 °C with spacing modules (6AG1193-6BN00-7BA0) or configured slots to the left and right of the module |
| vertical installation, min. | 30 °C; = Tmin |
| vertical installation, max. | 50 °C; = Tmax |
| Installation altitude above sea level, max. | 4 000 m |
| Ambient air temperature-barometric pressure-altitude | Restrictions for installation altitudes > 2 000 m, see entry ID: 109771992 |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 48 g |
