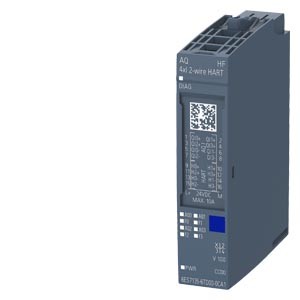

Siemens 6AG1135-6TD00-2CA1 Programmable Logic Controller

Name: Siemens 6AG1135-6TD00-2CA1
Brand: Siemens
SKU: 6AG1135-6TD00-2CA1
Rating: 4.7 (4 reviews)

The Siemens 6AG1135-6TD00-2CA1 Programmable Logic Controller features an AQ 4xI HART HF module with 1.7 W power loss and 707 V DC insulation. It supports temperatures from 40 °C to 60 °C, operates up to 5,000 m altitude, and comes in a compact 15×73×58 mm design for efficient panel integration. Explore Siemens automation solutions and Siemens PLC systems compatible with the ET Series architecture.

Datasheet

Brand	Siemens
Product Type	Programmable Logic Controller (PLC)
Model Number	6AG1135-6TD00-2CA1

Technical Specifications of Siemens 6AG1135-6TD00-2CA1

Specification	Value
Product type designation	AQ 4xI HART HF
Power loss, typ.	1.7 W
Isolation tested with	707 V DC (type test)
horizontal installation, min.	40 °C; = Tmin (incl. condensation/frost)
horizontal installation, max.	60 °C; = Tmax; +70 °C with spacing modules (6AG1193-6BN00-7BA0) or configured slots to the left and right of the module
vertical installation, min.	40 °C; = Tmin
vertical installation, max.	50 °C; = Tmax
Installation altitude above sea level, max.	5 000 m
Ambient air temperature-barometric pressure-altitude	Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
Width	15 mm
Height	73 mm
Depth	58 mm
Weight, approx.	31 g
