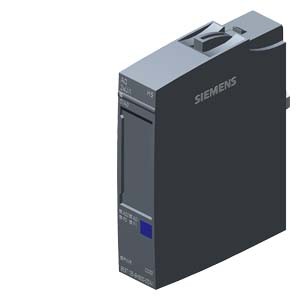

Siemens 6AG1135-6HB00-2DA1 Programmable Logic Controller

Name: Siemens 6AG1135-6HB00-2DA1
Brand: Siemens
SKU: 6AG1135-6HB00-2DA1
Rating: 4.6 (4 reviews)

The Siemens 6AG1135-6HB00-2DA1 Programmable Logic Controller uses an AQ 2xU/I HS module with 0.9 W power loss and 707 V DC insulation. It operates from 40 °C to 60 °C depending on mounting, supports reliable performance up to 5,000 m altitude, and is built in a compact 15×73×58 mm form. Explore Siemens automation solutions and Siemens PLC systems for full ET Series compatibility.

Datasheet

Brand	Siemens
Product Type	Programmable Logic Controller (PLC)
Model Number	6AG1135-6HB00-2DA1

Technical Specifications of Siemens 6AG1135-6HB00-2DA1

Specification	Value
Product type designation	AQ 2xU/I HS
Power loss, typ.	0.9 W
Isolation tested with	707 V DC (type test)
horizontal installation, min.	40 °C; = Tmin (incl. condensation/frost)
horizontal installation, max.	60 °C; = Tmax; +70 °C with spacing modules (6AG1193-6BN00-7BA0) or configured slots to the left and right of the module
vertical installation, min.	40 °C; = Tmin
vertical installation, max.	50 °C; = Tmax
Installation altitude above sea level, max.	5 000 m
Ambient air temperature-barometric pressure-altitude	Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
Width	15 mm
Height	73 mm
Depth	58 mm
Weight, approx.	31 g
