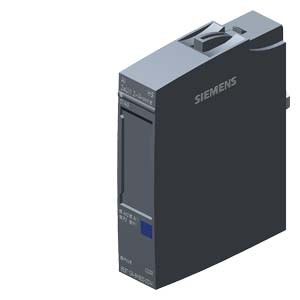

Siemens 6AG1134-6HB00-2DA1 Programmable Logic Controller
Siemens 6AG1134-6HB00-2DA1 Programmable Logic Controller
| Brand | Siemens |
| Product Type | Programmable Logic Controller (PLC) |
| Model Number | 6AG1134-6HB00-2DA1 |
Technical Specifications of Siemens 6AG1134-6HB00-2DA1
| Specification | Value |
|---|
| Product type designation | AI 2xU/I 2-/4-wire HS |
| Power loss, typ. | 0.95 W; without sensor supply |
| Isolation tested with | 707 V DC (type test) |
| horizontal installation, min. | 40 °C; = Tmin (incl. condensation/frost) |
| horizontal installation, max. | 60 °C; = Tmax; +70 °C with spacing modules (6AG1193-6BN00-7BA0) or configured slots to the left and right of the module |
| vertical installation, min. | 40 °C; = Tmin |
| vertical installation, max. | 50 °C; = Tmax |
| Installation altitude above sea level, max. | 5 000 m |
| Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 32 g |
