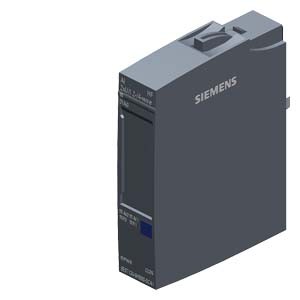

Siemens 6AG1134-6HB00-2CA1 Programmable Logic Controller

Name: Siemens 6AG1134-6HB00-2CA1
Brand: Siemens
SKU: 6AG1134-6HB00-2CA1
Rating: 4.6 (4 reviews)

Brand	Siemens
Product Type	Programmable Logic Controller (PLC)
Model Number	6AG1134-6HB00-2CA1

Technical Specifications of Siemens 6AG1134-6HB00-2CA1

Specification	Value
Product type designation	AI 2xU/I 2-/4-wire HF
Power loss, typ.	0.95 W; without sensor supply
Isolation tested with	707 V DC (type test)
horizontal installation, min.	40 °C; = Tmin (incl. condensation/frost)
horizontal installation, max.	60 °C; = Tmax; +70 °C with spacing modules (6AG1193-6BN00-7BA0) or configured slots to the left and right of the module including derating of the encoder supply to max. 50 mA per channel
vertical installation, min.	40 °C; = Tmin (incl. condensation/frost); start-up @ -30 °C
vertical installation, max.	50 °C; = Tmax
Installation altitude above sea level, max.	5 000 m
Ambient air temperature-barometric pressure-altitude	Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
Width	15 mm
Height	73 mm
Depth	58 mm
Weight, approx.	32 g
