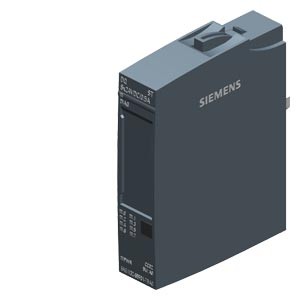

Siemens 6AG1132-6BF01-7BA0 Programmable Logic Controller

The Siemens 6AG1132-6BF01-7BA0 Programmable Logic Controller features a DQ 8x24 V DC/0.5A ST module with 1 W power loss and 707 V DC insulation. It supports 8 digital outputs with stable 24 V DC switching, operates from 40 °C to 70 °C depending on mounting, and functions up to 5,000 m altitude in compact 15×73×58 mm dimensions. Explore Siemens systems and Siemens PLC solutions for ET Series integration.

Siemens 6AG1132-6BF01-7BA0
Datasheet
BrandSiemens
Product TypeProgrammable Logic Controller (PLC)
Model Number6AG1132-6BF01-7BA0

Technical Specifications of Siemens 6AG1132-6BF01-7BA0

SpecificationValue
Product type designationDQ 8x24VDC/0,5A ST
Power loss, typ.1 W
Isolation tested with707 V DC (type test)
horizontal installation, min.40 °C; = Tmin (incl. condensation/frost)
horizontal installation, max.70 °C; = Tmax; > +60 °C max. total current 1.0 A
vertical installation, min.40 °C; = Tmin
vertical installation, max.50 °C; = Tmax
Installation altitude above sea level, max.5 000 m
Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
Width15 mm
Height73 mm
Depth58 mm
Weight, approx.30 g
Number of digital outputs8
Response threshold, typ.1 A; 0.7 to 1.3 A
lower limit48 Ω
upper limit12 kΩ
