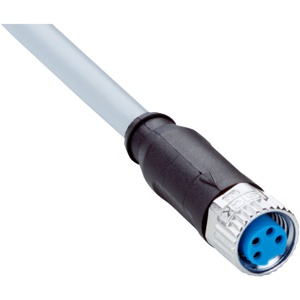

Sick YF8U14-050UA3XLEAX: Sensor Actuator Cable
Technical Specifications of Sick Sensor Actuator Cable YF8U14-050UA3XLEAX:
| Cable | 5 m, 4-wire, PUR, halogen-free |
| Cable diameter | 4.5 mm |
| Reference voltage | 60 V DC |
| Current loading | 4 A |
Sick Sensor Actuator Cable YF8U14-050UA3XLEAX Technical Specifications
| Specification | Value |
|---|---|
| Connection type head A | Female connector, M8, 4-pin, straight, A-coded |
| Connection type head B | Flying leads |
| Connector material | TPU |
| Connector color | Black |
| Cable | 5 m, 4-wire, PUR, halogen-free |
| Jacket material | PUR, halogen-free |
| Jacket color | Black |
| Cable diameter | 4.5 mm |
| Conductor cross section | 0.25 mmΒ² |
| Shielding | Unshielded |
| Reference voltage | 60 V DC |
| Current loading | 4 A |
| Signal type | Sensor/actuator cable |
| Operating temperature Flexible use | β5 Β°C ... +80 Β°C |
| Operating temperature Stationary position | β40 Β°C ... +80 Β°C |
| Operating temperature Head | β25 Β°C ... +85 Β°C |
