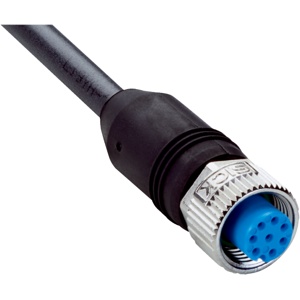

Sick YF2A15-100VB5XLEAX: Sensor Actuator Cable
Technical Specifications of Sick Sensor Actuator Cable YF2A15-100VB5XLEAX:
| Cable | 10 m, 5-wire, PVC |
| Cable diameter | 5.2 mm |
| Reference voltage | 125 V DC |
| Current loading | 4 A |
Sick Sensor Actuator Cable YF2A15-100VB5XLEAX Technical Specifications
| Specification | Value |
|---|---|
| Connection type head A | Female connector, M12, 5-pin, straight, A-coded |
| Connection type head B | Flying leads |
| Connector material | TPU |
| Connector color | Black |
| Cable | 10 m, 5-wire, PVC |
| Jacket material | PVC |
| Jacket color | Gray |
| Cable diameter | 5.2 mm |
| Conductor cross section | 0.34 mmΒ² |
| Shielding | Unshielded |
| Reference voltage | 125 V DC |
| Current loading | 4 A |
| Signal type | Sensor/actuator cable |
| Operating temperature Flexible use | β25 Β°C ... +80 Β°C |
| Operating temperature Stationary position | β30 Β°C ... +80 Β°C |
| Operating temperature Head | β25 Β°C ... +85 Β°C |
