During technical comparisons, WTT4SLC-3B3462A00 appears alongside Sick Laser Sensor, Sick Gtb6 P4211 and P&F Photoelectric Sensor so engineers assess signal types, ingress protection, and ambient tolerances accurately.

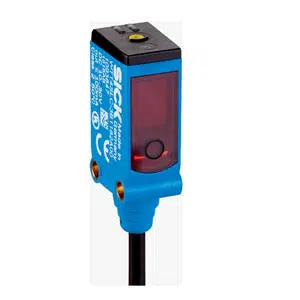

Sick WTT4SLC-3B3462A00 Photoelectric Sensor
The Sick WTT4SLC-3B3462A00 Photoelectric Sensor delivers 100 mm to 1,300 mm sensing range using a visible red 658 nm laser source. It offers background suppression, push-pull PNP/NPN output, β€ 5 ms response time, 100 Hz switching frequency, and a cable with M12 connector for industrial integration. Explore full Sick solutions at Sick Sensors, complete photoelectric models at Sick Photoelectric Sensors, and WTT series details at Sick WTT Series.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | WTT4SLC-3B3462A00 |
Sick WTT4SLC-3B3462A00 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression, Optical time-of-flight |
| Dimensions (W x H x D) | 12.2 mm x 41.8 mm x 17.3 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 50 mm ... 1,300 mm |
| Sensing range | 100 mm ... 1,300 mm |
| Type of Light | Visible red light |
| Light source | Laser 6) |
| Light spot size (distance) | Γ 4 mm (1,000 mm) |
| Wave length | 658 nm |
| Laser class | 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.1 |
| Adjustment | Single teach-in button, IO-Link |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 25 mA 3) |
| Switching output | Push-pull: PNP/NPN |
| Switching mode | Dark/light switching |
| Output current Imax. | β€ 50 mA |
| Response time | β€ 5 ms |
| Switching frequency | 100 Hz |
| Connection type | Cable with M12 male connector, 4-pin, 197 mm |
| Protection class | III |
| Housing material | Plastic, MABS, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | β40 Β°C ... +50 Β°C 9) |
| Ambient temperature, storage | β40 Β°C ... +75 Β°C |
| Weight | 10 g |
The Sick WTT4SLC-3B3462A00 Photoelectric Sensor is a compact background suppression model built for industrial automation. It features a 100 mm to 1,300 mm sensing range, uses a 658 nm laser light source, supports push-pull PNP/NPN output, and offers IO-Link capability for parameter control. As part of the Sick WTT series, the WTT4SLC-3B3462A00 provides stable time-of-flight detection in space-constrained machine layouts.
Industrial users deploy the Sick WTT4SLC-3B3462A00 Photoelectric Sensor in conveyors, packaging machines, automated assembly lines, and precise object-positioning systems. Its fast response time, small optical spot, IP67-rated plastic housing, and reliable switching performance ensure consistent operation in environments affected by vibration, dust, or temperature fluctuations. The teach-in button allows simple commissioning during machine setup.
The Sick WTT4SLC-3B3462A00 Photoelectric Sensor delivers reliable short-to-mid range sensing, durable IP67 protection, and stable optical output for continuous industrial operation. Trusted across automation lines in India, this model offers precise detection, rugged materials, and dependable switching performance. Its compact form factor, laser technology, and robust electrical design make it suitable for machine builders and maintenance teams seeking long-term sensing reliability.
