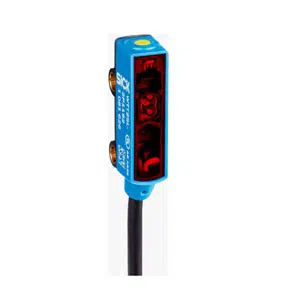

Sick WTT2SL-2P3292 Photoelectric Sensor
The Sick WTT2SL-2P3292 Photoelectric Sensor provides a sensing range of fifty to eight hundred millimeters using infrared laser light. This model operates on 10β30 V DC with a PNP switching output, IP67 enclosure rating, and background suppression. It uses a 940 nm laser light source, offers a 90 ms response time, and supports light/dark switching. The rectangular housing measures 7.7 mm Γ 27.5 mm Γ 13.5 mm with an M8 connector. Visit Sick Sensors, explore Sick Photoelectric Sensors, and review the Sick WTT Series for related models.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | WTT2SL-2P3292 |
Sick WTT2SL-2P3292 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Background suppression, Optical time-of-flight |
| Dimensions (W x H x D) | 7.7 mm x 27.5 mm x 13.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 50 mm ... 800 mm |
| Sensing range | 50 mm ... 800 mm |
| Type of Light | Infrared light |
| Light source | Laser |
| Light spot size (distance) | Γ 10 mm (300 mm) |
| Wave length | 940 nm |
| Laser class | 1 |
| Adjustment | Single teach-in button 3) |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 20 mA 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Output current Imax. | β€ 50 mA |
| Response time | Typ. 90 ms |
| Switching frequency | 5 Hz |
| Connection type | PVC Cable with M8 male connector, 4-pin, 200 mm |
| Protection class | III |
| Housing material | Plastic, MABS, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | β25 Β°C ... +50 Β°C |
| Ambient temperature, storage | β40 Β°C ... +75 Β°C |
| Weight | - |
The Sick WTT2SL-2P3292 Photoelectric Sensor is a compact detection device using a 940 nm infrared laser for stable measurement. The model Sick WTT2SL-2P3292 supports a sensing range of 50β800 mm, operates on 10β30 V DC, and provides a PNP output with light/dark switching. It belongs to the Sick WTT series and is widely used in industrial automation where accurate object detection is required.
In operation, this sensor performs reliably in conveyor systems, packaging units, sorting mechanisms, and compact automation assemblies. The optical time-of-flight principle allows consistent detection even in changing lighting conditions. Its stable output, compact rectangular housing, and IP67 protection help ensure dependable performance in machinery where space, durability, and repeatable detection are essential.
The Sick WTT2SL-2P3292 Photoelectric Sensor combines a defined sensing range, a laser-based detection method, and practical electrical compatibility to suit industrial automation needs. With a robust IP67 enclosure, 940 nm infrared source, 90 ms response time, and PNP switching mode, it provides dependable performance across varied applications. Sick as a brand ensures consistent build quality, making this model suitable for engineers seeking reliable sensing capability in demanding environments.
